Select broad lines
13

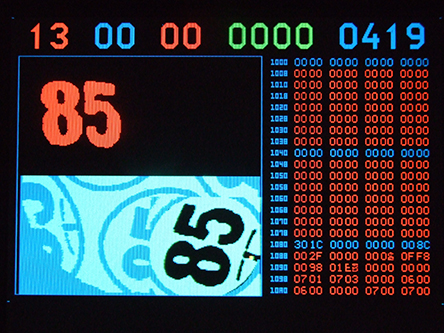

Image (or at least its top left quater) is cleared, selecting only Ink pixels which are surrounded by massive Ink areas. This eliminates not only small errors caused by noise, but also underlining markers.
