Selected components list
14
New connected components list is made, but this time not for Paper, but for Ink pixels. If more than two components are detected, the error is reported. Again, all coordinates and component dimensions are registered, as it will be necessary in the next step.

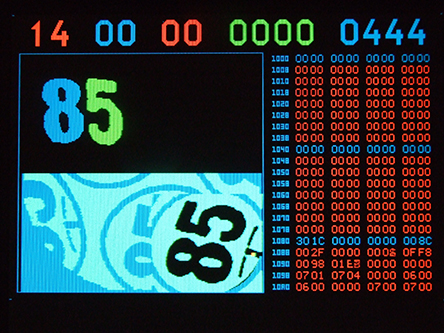

If there are two components (two-digit number), the right one is painted in green (bit 5) and the left one in blue (bit 6).
